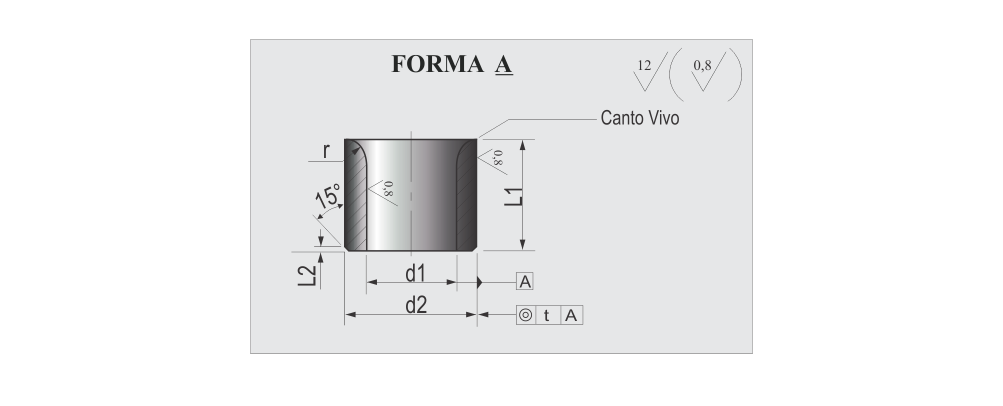

Buchas de Guia
Buchas de Guia - Curto
| Código | De | Até | Curto | N6 | r | t | L2 | |
|---|---|---|---|---|---|---|---|---|
| BG1 | 5 | 6 | 10 | 10 | 1.5 | 0.02 | 1.25 | Solicitar |
| BG2 | 6 | 8 | 10 | 12 | 1.5 | 0.02 | 1.25 | Solicitar |
| BG3 | 8 | 10 | 12 | 15 | 2 | 0.02 | 1.5 | Solicitar |
| BG4 | 10 | 12 | 12 | 18 | 2 | 0.02 | 1.5 | Solicitar |
| BG5 | 12 | 15 | 16 | 22 | 2 | 0.02 | 1.5 | Solicitar |
| BG6 | 15 | 18 | 16 | 26 | 2 | 0.02 | 1.5 | Solicitar |
| BG7 | 18 | 22 | 20 | 30 | 3 | 0.02 | 2.5 | Solicitar |
| BG8 | 22 | 26 | 20 | 35 | 3 | 0.02 | 2.5 | Solicitar |
| BG9 | 26 | 30 | 25 | 42 | 3 | 0.02 | 2.5 | Solicitar |
| BG10 | 30 | 35 | 25 | 48 | 3.5 | 0.04 | 2.5 | Solicitar |
| BG11 | 35 | 42 | 30 | 55 | 3.5 | 0.04 | 3 | Solicitar |
| BG12 | 42 | 48 | 30 | 62 | 3.5 | 0.04 | 3 | Solicitar |
| BG13 | 48 | 55 | 30 | 70 | 3.5 | 0.04 | 3 | Solicitar |
Buchas de Guia - Médio
| Código | De | Até | Medio | N6 | r | t | L2 | |
|---|---|---|---|---|---|---|---|---|
| BGM2 | 6 | 8 | 16 | 12 | 1.5 | 0.02 | 1.25 | Solicitar |
| BGM3 | 8 | 10 | 20 | 15 | 2 | 0.02 | 1.5 | Solicitar |
| BGM4 | 10 | 12 | 20 | 18 | 2 | 0.02 | 1.5 | Solicitar |
| BGM5 | 12 | 15 | 28 | 22 | 2 | 0.02 | 1.5 | Solicitar |
| BGM6 | 15 | 18 | 28 | 26 | 2 | 0.02 | 1.5 | Solicitar |
| BGM7 | 18 | 22 | 36 | 30 | 3 | 0.02 | 2.5 | Solicitar |
| BGM8 | 22 | 26 | 36 | 35 | 3 | 0.02 | 2.5 | Solicitar |
| BGM9 | 26 | 30 | 45 | 42 | 3 | 0.02 | 2.5 | Solicitar |
| BGM10 | 30 | 35 | 45 | 48 | 3.5 | 0.04 | 2.5 | Solicitar |
| BGM11 | 35 | 42 | 56 | 55 | 3.5 | 0.04 | 3 | Solicitar |
| BGM12 | 42 | 48 | 56 | 62 | 3.5 | 0.04 | 3 | Solicitar |
| BGM13 | 48 | 55 | 56 | 70 | 3.5 | 0.04 | 3 | Solicitar |
| BGM1 | 5 | 6 | 16 | 10 | 1.5 | 0.02 | 1.25 | Solicitar |
