Coluna Para Porta Moldes

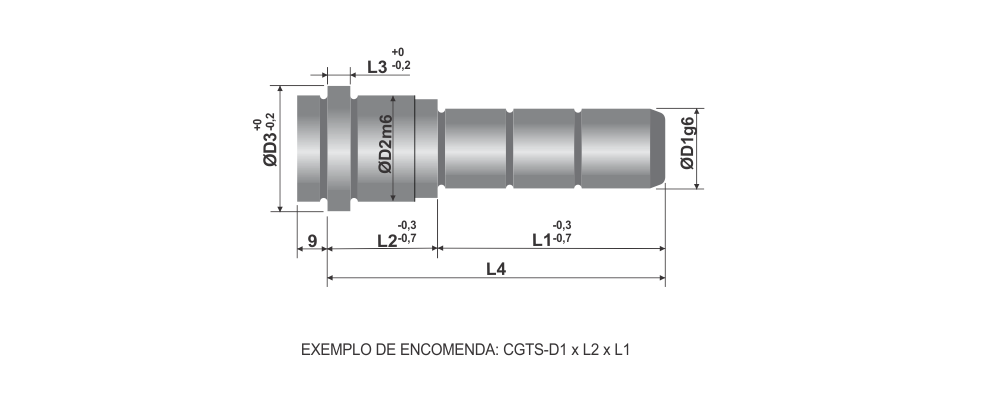

CGTS
| Código | D1 | D2 | D3 | L2 | L3 | L1 | |
|---|---|---|---|---|---|---|---|
| CGTS-54 | 58/60 | 70 | 80 | 196 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-53 | 58/60 | 70 | 80 | 156 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-52 | 58/60 | 70 | 80 | 136 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-51 | 58/60 | 70 | 80 | 116 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-50 | 58/60 | 70 | 80 | 96 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-49 | 58/60 | 70 | 80 | 76 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-48 | 58/60 | 70 | 80 | 66 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-47 | 58/60 | 70 | 80 | 56 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-46 | 48/50 | 60 | 70 | 196 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-45 | 48/50 | 60 | 70 | 156 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-44 | 48/50 | 60 | 70 | 136 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-43 | 48/50 | 60 | 70 | 116 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-42 | 48/50 | 60 | 70 | 96 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-41 | 48/50 | 60 | 70 | 76 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-40 | 48/50 | 60 | 70 | 66 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-39 | 48/50 | 60 | 70 | 56 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-38 | 40/42 | 54 | 60 | 196 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-37 | 40/42 | 54 | 60 | 156 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-36 | 40/42 | 54 | 60 | 136 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-35 | 40/42 | 54 | 60 | 116 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-34 | 40/42 | 54 | 60 | 96 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-33 | 40/42 | 54 | 60 | 76 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-32 | 40/42 | 54 | 60 | 66 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-31 | 40/42 | 54 | 60 | 56 | 10 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-30 | 30/32 | 42 | 47 | **196 | 6 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-29 | 30/32 | 42 | 47 | **156 | 6 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-28 | 30/32 | 42 | 47 | 136 | 6 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-27 | 30/32 | 42 | 47 | 116 | 6 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-26 | 30/32 | 42 | 47 | 96 | 6 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-25 | 30/32 | 42 | 47 | 76 | 6 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-24 | 30/32 | 42 | 47 | 66 | 6 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-23 | 30/32 | 42 | 47 | 56 | 6 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-22 | 30/32 | 42 | 47 | *46 | 6 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-21 | 30/32 | 42 | 47 | *36 | 6 | 36 / 56 / 76 /116 / 156 / 196 | Solicitar |
| CGTS-20 | 22/24 | 30 | 35 | 96 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-19 | 22/24 | 30 | 35 | 76 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-18 | 22/24 | 30 | 35 | 66 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-17 | 22/24 | 30 | 35 | 56 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-16 | 22/24 | 30 | 35 | 46 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-15 | 22/24 | 30 | 35 | 36 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-14 | 22/24 | 30 | 35 | 27 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-13 | 18/20 | 26 | 31 | 96 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-12 | 18/20 | 26 | 31 | 76 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-11 | 18/20 | 26 | 31 | 66 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-10 | 18/20 | 26 | 31 | 56 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-09 | 18/20 | 26 | 31 | 46 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-08 | 18/20 | 26 | 31 | 36 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-07 | 18/20 | 26 | 31 | 27 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CGTS-06 | 14/15 | 20 | 25 | 66 | 6 | 22 / 36 / 56 | Solicitar |
| CGTS-05 | 14/15 | 20 | 25 | 56 | 6 | 22 / 36 / 56 | Solicitar |
| CGTS-04 | 14/15 | 20 | 25 | 46 | 6 | 22 / 36 / 56 | Solicitar |
| CGTS-03 | 14/15 | 20 | 25 | 36 | 6 | 22 / 36 / 56 | Solicitar |
| CGTS-02 | 14/15 | 20 | 25 | 27 | 6 | 22 / 36 / 56 | Solicitar |
| CGTS-01 | 14/15 | 20 | 25 | 22 | 6 | 22 / 36 / 56 | Solicitar |

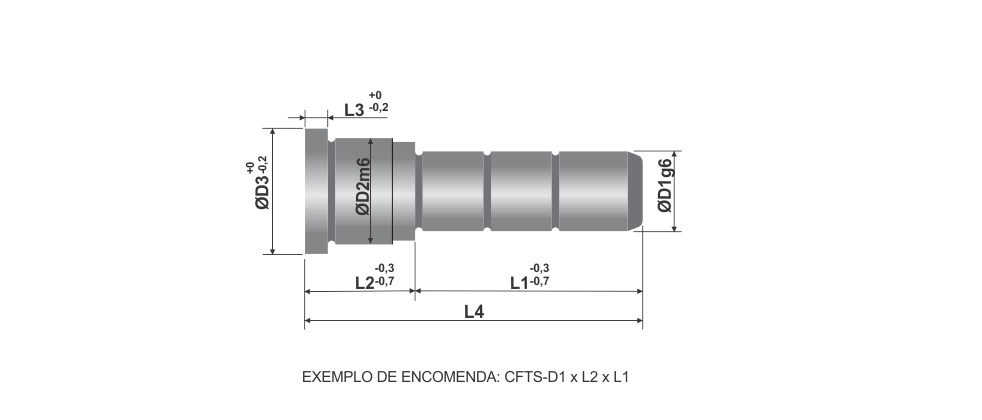

CFTS
| Código | D1 | D2 | D3 | L2 | L3 | L1 | |
|---|---|---|---|---|---|---|---|
| CFTS-07 | 18/20 | 26 | 31 | 46 | 6 | 65 / 84 / 102 / 122 / 140 /168 | Solicitar |
| CFTS-06 | 18/20 | 26 | 31 | 36 | 6 | 65 / 84 / 102 / 122 / 140 | Solicitar |
| CFTS-05 | 14/15 | 20 | 25 | 66 | 6 | 84 / 102 / 122 | Solicitar |
| CFTS-04 | 14/15 | 20 | 25 | 56 | 6 | 84 / 102 / 122 / 140 | Solicitar |
| CFTS-03 | 14/15 | 20 | 25 | 46 | 6 | 65 / 84 / 102 | Solicitar |
| CFTS-02 | 14/15 | 20 | 25 | 36 | 6 | 65 / 84 / 102 /122 | Solicitar |
| CFTS-01 | 14/15 | 20 | 25 | 27 | 6 | 65 / 84 / 102 | Solicitar |
| CFTS-08 | 18/20 | 26 | 31 | 56 | 6 | 65 / 84 / 102 / 122 / 140 | Solicitar |
| CFTS-09 | 18/20 | 26 | 31 | 66 | 6 | 102 / 122 / 140 / 168 | Solicitar |
| CFTS-10 | 18/20 | 26 | 31 | 76 | 6 | 102 / 122 / 140 / 168 / 198 | Solicitar |
| CFTS-11 | 18/20 | 26 | 31 | 96 | 6 | 122 / 140 / 168 | Solicitar |
| CFTS-12 | 22/24 | 30 | 35 | 36 | 6 | 65 / 84 / 102 / 122 / 140 | Solicitar |
| CFTS-13 | 22/24 | 30 | 35 | 46 | 6 | 84 / 102 / 122 / 140 /168 | Solicitar |
| CFTS-14 | 22/24 | 30 | 35 | 56 | 6 | 84 / 102 / 122 / 140 | Solicitar |
| CFTS-15 | 22/24 | 30 | 35 | 66 | 6 | 102 / 122 / 140 / 168 | Solicitar |
| CFTS-16 | 22/24 | 30 | 35 | 76 | 6 | 102 / 122 / 140 / 168 / 198 | Solicitar |
| CFTS-17 | 22/24 | 30 | 35 | 96 | 6 | 122 / 140 / 168 | Solicitar |
| CFTS-18 | 30/32 | 42 | 47 | 46 | 6 | 84 / 102 / 122 / 140 /168 | Solicitar |
| CFTS-19 | 30/32 | 42 | 47 | 56 | 6 | 102 / 122 / 140 / 168 / 198 | Solicitar |
| CFTS-20 | 30/32 | 42 | 47 | 66 | 6 | 122 / 140 / 168 | Solicitar |
| CFTS-21 | 30/32 | 42 | 47 | 76 | 6 | 122 / 140 / 168 /198 | Solicitar |
| CFTS-22 | 30/32 | 42 | 47 | 96 | 6 | 122 / 140 / 168 /198 / 245 | Solicitar |
| CFTS-23 | 30/32 | 42 | 47 | 116 | 6 | 140 / 168 /198 | Solicitar |

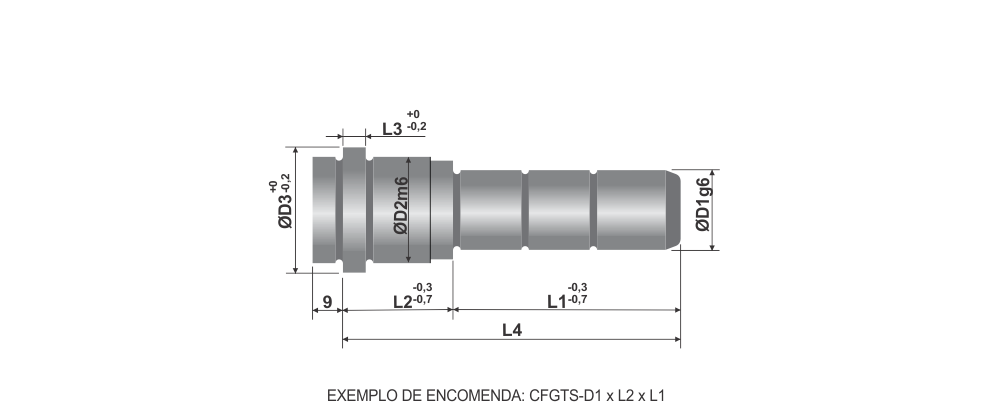

CFGTS
| Código | D1 | D2 | D3 | L2 | L3 | L1 | |
|---|---|---|---|---|---|---|---|
| CFGTS-01 | 14/15 | 20 | 25 | 27 | 6 | 65 / 84 / 102 | Solicitar |
| CFGTS-02 | 14/15 | 20 | 25 | 36 | 6 | 65 / 84 / 102 / 122 | Solicitar |
| CFGTS-03 | 14/15 | 20 | 25 | 46 | 6 | 65 / 84 / 102 | Solicitar |
| CFGTS-04 | 14/15 | 20 | 25 | 56 | 6 | 84 / 102 / 122 / 140 | Solicitar |
| CFGTS-05 | 14/15 | 20 | 25 | 66 | 6 | 84 / 102 / 122 | Solicitar |
| CFGTS-06 | 18/20 | 26 | 31 | 36 | 6 | 84 / 102 / 122 / 140 | Solicitar |
| CFGTS-07 | 18/20 | 26 | 31 | 46 | 6 | 84 / 102 / 122 / 140 / 168 | Solicitar |
| CFGTS-08 | 18/20 | 26 | 31 | 56 | 6 | 84 / 102 / 122 / 140 | Solicitar |
| CFGTS-09 | 18/20 | 26 | 31 | 66 | 6 | 102 / 122 / 140 / 168 | Solicitar |
| CFGTS-10 | 18/20 | 26 | 31 | 76 | 6 | 102 / 122 / 140 / 168 / 198 | Solicitar |
| CFGTS-11 | 18/20 | 26 | 31 | 96 | 6 | 122 / 140 / 168 | Solicitar |
| CFGTS-12 | 22/24 | 30 | 35 | 36 | 6 | 65 / 84 / 102 / 122 / 140 | Solicitar |
| CFGTS-13 | 22/24 | 30 | 35 | 46 | 6 | 84 / 102 / 122 / 140 / 168 | Solicitar |
| CFGTS-14 | 22/24 | 30 | 35 | 56 | 6 | 84 / 102 / 122 / 140 | Solicitar |
| CFGTS-15 | 22/24 | 30 | 35 | 66 | 6 | 102 / 122 / 140 / 168 | Solicitar |
| CFGTS-16 | 22/24 | 30 | 35 | 76 | 6 | 102 / 122 / 140 / 168 / 198 | Solicitar |
| CFGTS-17 | 22/24 | 30 | 35 | 96 | 6 | 122 / 140 / 168 | Solicitar |
| CFGTS-18 | 30/32 | 42 | 47 | 46 | 6 | 84 / 102 / 122 / 140 / 168 | Solicitar |
| CFGTS-19 | 30/32 | 42 | 47 | 56 | 6 | 102 / 122 / 140 / 168 | Solicitar |
| CFGTS-20 | 30/32 | 42 | 47 | 66 | 6 | 102 / 122 / 140 / 168 / 198 | Solicitar |
| CFGTS-21 | 30/32 | 42 | 47 | 76 | 6 | 122 / 140 / 168 / 198 | Solicitar |
| CFGTS-22 | 30/32 | 42 | 47 | 96 | 6 | 122 / 140 / 168 / 198 / 245 | Solicitar |
| CFGTS-23 | 30/32 | 42 | 47 | 116 | 6 | 140 / 168 / 198 | Solicitar |

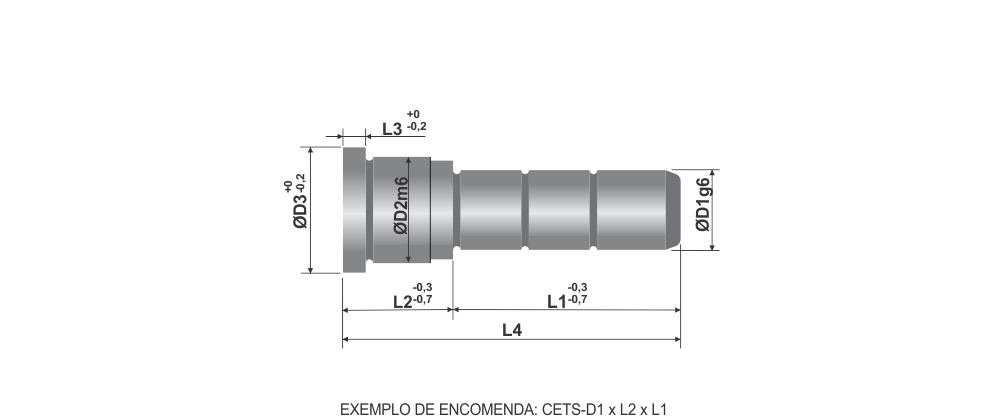

CETS
| Código | D1 | D2 | D3 | L2 | L3 | L1 | |
|---|---|---|---|---|---|---|---|
| CETS-01 | 15 | 20 | 25 | 27 | 6 | 46 / 56 / 76 | Solicitar |
| CETS-02 | 15 | 20 | 25 | 36 | 6 | 46 / 56 / 76 | Solicitar |
| CETS-03 | 15 | 20 | 25 | 46 | 6 | 46 / 56 / 76 | Solicitar |
| CETS-04 | 20 | 26 | 31 | 27 | 6 | 56 / 76 / 96 | Solicitar |
| CETS-05 | 20 | 26 | 31 | 36 | 6 | 56 / 76 / 96 | Solicitar |
| CETS-06 | 20 | 26 | 31 | 46 | 6 | 56 / 76 / 96 | Solicitar |
| CETS-07 | 24 | 30 | 35 | 36 | 6 | 76 / 86 / 96 / 116 / 136 | Solicitar |
| CETS-08 | 24 | 30 | 35 | 46 | 6 | 76 / 86 / 96 / 116 / 136 | Solicitar |
| CETS-09 | 24 | 30 | 35 | 56 | 6 | 96 / 116 / 136 | Solicitar |
| CETS-10 | 24 | 30 | 35 | 76 | 6 | 96 / 116 / 136 | Solicitar |
| CETS-11 | 32 | 42 | 47 | 46 | 6 | 116 /136/ 156 | Solicitar |
| CETS-12 | 32 | 42 | 47 | 56 | 6 | 116 /136/ 156 | Solicitar |
| CETS-13 | 32 | 42 | 47 | 76 | 6 | 116 /136/ 156 | Solicitar |

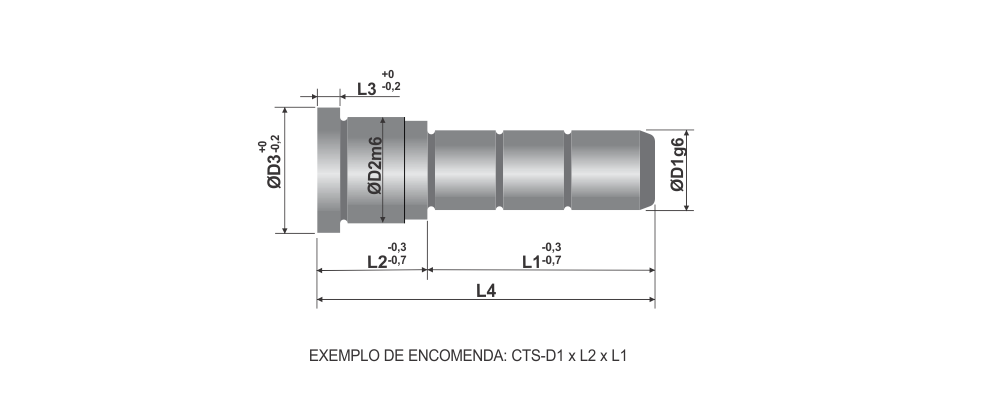

CTS
| Código | D1 | D2 | D3 | L2 | L3 | L1 | |
|---|---|---|---|---|---|---|---|
| CTS-01 | 14/15 | 20 | 25 | 22 | 6 | 22 / 36 / 56 | Solicitar |
| CTS-02 | 14/15 | 20 | 25 | 27 | 6 | 22 / 36 / 56 | Solicitar |
| CTS-03 | 14/15 | 20 | 25 | 36 | 6 | 22 / 36 / 56 | Solicitar |
| CTS-04 | 14/15 | 20 | 25 | 46 | 6 | 22 / 36 / 56 | Solicitar |
| CTS-05 | 14/15 | 20 | 25 | 56 | 6 | 22 / 36 / 56 | Solicitar |
| CTS-06 | 14/15 | 20 | 25 | 66 | 6 | 22 / 36 / 56 | Solicitar |
| CTS-07 | 18/20 | 26 | 31 | 27 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-08 | 18/20 | 26 | 31 | 36 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-09 | 18/20 | 26 | 31 | 46 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-10 | 18/20 | 26 | 31 | 56 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-11 | 18/20 | 26 | 31 | 66 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-12 | 18/20 | 26 | 31 | 76 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-13 | 18/20 | 26 | 31 | 96 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-14 | 22/24 | 30 | 35 | 27 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-15 | 22/24 | 30 | 35 | 36 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-16 | 22/24 | 30 | 35 | 46 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-17 | 22/24 | 30 | 35 | 56 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-18 | 22/24 | 30 | 35 | 66 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-19 | 22/24 | 30 | 35 | 76 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-20 | 22/24 | 30 | 35 | 96 | 6 | 27 / 46 / 66 / 96 | Solicitar |
| CTS-21 | 30/32 | 42 | 47 | *36 | 6 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-22 | 30/32 | 42 | 47 | *46 | 6 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-23 | 30/32 | 42 | 47 | 56 | 6 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-24 | 30/32 | 42 | 47 | 66 | 6 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-25 | 30/32 | 42 | 47 | 76 | 6 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-26 | 30/32 | 42 | 47 | 96 | 6 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-27 | 30/32 | 42 | 47 | 116 | 6 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-28 | 30/32 | 42 | 47 | 136 | 6 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-29 | 30/32 | 42 | 47 | **156 | 6 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-30 | 30/32 | 42 | 47 | **196 | 6 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-31 | 40/42 | 54 | 60 | 56 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-32 | 40/42 | 54 | 60 | 66 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-33 | 40/42 | 54 | 60 | 76 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-34 | 40/42 | 54 | 60 | 96 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-35 | 40/42 | 54 | 60 | 116 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-36 | 40/42 | 54 | 60 | 136 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-37 | 40/42 | 54 | 60 | 156 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-38 | 40/42 | 54 | 60 | 196 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-39 | 48/50 | 60 | 70 | 56 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-40 | 48/50 | 60 | 70 | 66 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-41 | 48/50 | 60 | 70 | 76 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-42 | 48/50 | 60 | 70 | 96 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-43 | 48/50 | 60 | 70 | 116 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-44 | 48/50 | 60 | 70 | 136 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-45 | 48/50 | 60 | 70 | 156 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-46 | 48/50 | 60 | 70 | 196 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-47 | 58/60 | 70 | 80 | 56 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-48 | 58/60 | 70 | 80 | 66 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-49 | 58/60 | 70 | 80 | 76 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-50 | 58/60 | 70 | 80 | 96 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-51 | 58/60 | 70 | 80 | 116 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-52 | 58/60 | 70 | 80 | 136 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-53 | 58/60 | 70 | 80 | 156 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
| CTS-54 | 58/60 | 70 | 80 | 196 | 10 | 36 / 36 / 56 / 76 / 116 / 156 / 196 | Solicitar |
