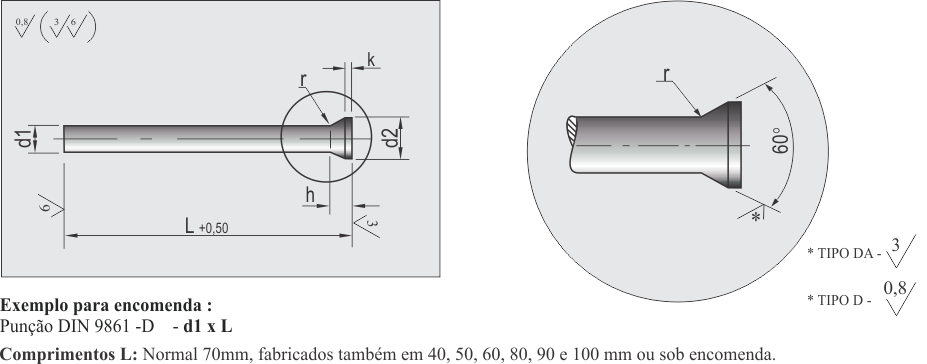

Punção Cabeça Chanfrada

Norma DIN EN 9861 DA

Material: HSS (aço rápido) - Dureza 64 ± 2 HRC, Cabeça 50 ± 5 HRC.
Outras medidas e materiais, sob consulta.
TIPO - DA : Haste embaixo da cabeça mais grossa devido ao forjamento, d4 = 0,03 mm mais o diâmetro nominal.
Comprimentos L : Normal 70mm, fabricados também em 40, 50, 60, 80, 90 e 100 mm ou sob encomenda.

Código	Ø HASTE d1 h6	Ø CABEÇA d2 -0,05	ALTURA h +0,2	TIPO-"DA" d4	RAIO r	ALTURA k
PCCDA1	1	1.8	1.19	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA2	1.1	1.8	1.11	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA3	1.2	2	1.19	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA4	1.3	2	1.11	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA5	1.4	2.2	1.19	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA6	1.5	2.2	1.11	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA7	1.6	2.5	1.28	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA8	1.7	2.5	1.19	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA9	1.8	2.8	1.37	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA10	1.9	2.8	1.28	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA11	2	3	1.37	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA12	2.1	3.2	1.45	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA13	2.2	3.2	1.37	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA14	2.3	3.5	1.54	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA15	2.4	3.5	1.45	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA16	2.5	3.5	1.37	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA17	2.6	4	1.71	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA18	2.7	4	1.63	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA19	2.8	4	1.54	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA20	2.9	4	1.45	d1 +0.03	0.4 +0.3	0.5	Solicitar
PCCDA21	3	4.5	1.8	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA22	3.1	4.5	1.71	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA23	3.2	4.5	1.63	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA24	3.3	4.5	1.54	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA25	3.4	4.5	1.45	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA26	3.5	5	1.8	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA27	3.6	5	1.71	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA28	3.7	5	1.63	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA29	3.8	5	1.54	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA30	3.9	5	1.45	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA31	4	5.5	1.8	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA32	4.1	5.5	1.71	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA33	4.2	5.5	1.63	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA34	4.3	5.5	1.54	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA35	4.4	5.5	1.45	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA36	4.5	6	1.8	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA37	4.6	6	1.71	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA38	4.7	6	1.63	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA39	4.8	6	1.54	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA40	4.9	6	1.45	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA41	5	6.5	1.8	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA42	5.1	6.5	1.71	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA43	5.2	6.5	1.63	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA44	5.3	6.5	1.54	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA45	5.4	6.5	1.45	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA46	5.5	7	1.8	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA47	5.6	7	1.71	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA48	5.7	7	1.63	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA49	5.8	7	1.54	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA50	5.9	7	1.45	d1 +0.03	0.6 +0.4	0.5	Solicitar
PCCDA51	6	8	2.23	d1 +0.03	1.0 +0.5	0.5	Solicitar
PCCDA52	6.1	8	2.15	d1 +0.03	1.0 +0.5	0.5	Solicitar
PCCDA53	6.2	8	2.06	d1 +0.03	1.0 +0.5	0.5	Solicitar
PCCDA54	6.3	8	1.97	d1 +0.03	1.0 +0.5	0.5	Solicitar
PCCDA55	6.4	8	1.89	d1 +0.03	1.0 +0.5	0.5	Solicitar
PCCDA56	6.5	9	3.17	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA57	7	9	2.73	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA58	7.5	10	3.17	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA59	8	10	2.73	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA60	8.5	11	3.17	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA61	9	11	2.73	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA62	9.5	12	3.17	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA63	10	12	2.73	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA64	10.5	13	3.17	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA65	11	13	2.73	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA66	11.5	14	3.17	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA67	12	14	2.73	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA68	12.5	15	3.17	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA69	13	15	2.73	d1 +0.04	1.0 +0.5	1	Solicitar
PCCDA70	13.5	16	3.67	d1 +0.04	1.5 +0.5	1.5	Solicitar
PCCDA71	14	16	3.23	d1 +0.04	1.5 +0.5	1.5	Solicitar
PCCDA72	14.5	17	3.67	d1 +0.04	1.5 +0.5	1.5	Solicitar
PCCDA73	15	17	3.23	d1 +0.04	1.5 +0.5	1.5	Solicitar
PCCDA74	15.5	18	3.67	d1 +0.04	1.5 +0.5	1.5	Solicitar
PCCDA75	16	18	3.23	d1 +0.04	1.5 +0.5	1.5	Solicitar
PCCDA76	16.5	19	3.67	d1 +0.04	1.5 +0.5	1.5	Solicitar

Norma DIN EN 9861 D

Material: HSS (aço rápido) - Dureza 64 ± 2 HRC, Cabeça 50 ± 5 HRC.
Outras medidas e materiais, sob consulta.
TIPO - D : Haste retificada h6 até a cabeça.
Comprimentos L : Normal 70mm, fabricados também em 40, 50, 60, 80, 90 e 100 mm ou sob encomenda.

Código	Ø HASTE d1 h6	Ø CABEÇA d2 -0,05	ALTURA h +0,2	RAIO r	ALTURA k
PCCD1	1	1.8	1.19	0.4 +0.3	0.5	Solicitar
PCCD2	1.1	1.8	1.11	0.4 +0.3	0.5	Solicitar
PCCD3	1.2	2	1.19	0.4 +0.3	0.5	Solicitar
PCCD4	1.3	2	1.11	0.4 +0.3	0.5	Solicitar
PCCD5	1.4	2.2	1.19	0.4 +0.3	0.5	Solicitar
PCCD6	1.5	2.2	1.11	0.4 +0.3	0.5	Solicitar
PCCD7	1.6	2.5	1.28	0.4 +0.3	0.5	Solicitar
PCCD8	1.7	2.5	1.19	0.4 +0.3	0.5	Solicitar
PCCD9	1.8	2.8	1.37	0.4 +0.3	0.5	Solicitar
PCCD10	1.9	2.8	1.28	0.4 +0.3	0.5	Solicitar
PCCD11	2	3	1.37	0.4 +0.3	0.5	Solicitar
PCCD12	2.1	3.2	1.45	0.4 +0.3	0.5	Solicitar
PCCD13	2.2	3.2	1.37	0.4 +0.3	0.5	Solicitar
PCCD14	2.3	3.5	1.54	0.4 +0.3	0.5	Solicitar
PCCD15	2.4	3.5	1.45	0.4 +0.3	0.5	Solicitar
PCCD16	2.5	3.5	1.37	0.4 +0.3	0.5	Solicitar
PCCD17	2.6	4	1.71	0.4 +0.3	0.5	Solicitar
PCCD18	2.7	4	1.63	0.4 +0.3	0.5	Solicitar
PCCD19	2.8	4	1.54	0.4 +0.3	0.5	Solicitar
PCCD20	2.9	4	1.45	0.4 +0.3	0.5	Solicitar
PCCD21	3	4.5	1.8	0.6 +0.4	0.5	Solicitar
PCCD22	3.1	4.5	1.71	0.6 +0.4	0.5	Solicitar
PCCD23	3.2	4.5	1.63	0.6 +0.4	0.5	Solicitar
PCCD24	3.3	4.5	1.54	0.6 +0.4	0.5	Solicitar
PCCD25	3.4	4.5	1.45	0.6 +0.4	0.5	Solicitar
PCCD26	3.5	5	1.8	0.6 +0.4	0.5	Solicitar
PCCD27	3.6	5	1.71	0.6 +0.4	0.5	Solicitar
PCCD28	3.7	5	1.63	0.6 +0.4	0.5	Solicitar
PCCD29	3.8	5	1.54	0.6 +0.4	0.5	Solicitar
PCCD30	3.9	5	1.45	0.6 +0.4	0.5	Solicitar
PCCD31	4	5.5	1.8	0.6 +0.4	0.5	Solicitar
PCCD32	4.1	5.5	1.71	0.6 +0.4	0.5	Solicitar
PCCD33	4.2	5.5	1.63	0.6 +0.4	0.5	Solicitar
PCCD34	4.3	5.5	1.54	0.6 +0.4	0.5	Solicitar
PCCD35	4.4	5.5	1.45	0.6 +0.4	0.5	Solicitar
PCCD36	4.5	6	1.8	0.6 +0.4	0.5	Solicitar
PCCD37	4.6	6	1.71	0.6 +0.4	0.5	Solicitar
PCCD38	4.7	6	1.63	0.6 +0.4	0.5	Solicitar
PCCD39	4.8	6	1.54	0.6 +0.4	0.5	Solicitar
PCCD40	4.9	6	1.45	0.6 +0.4	0.5	Solicitar
PCCD41	5	6.5	1.8	0.6 +0.4	0.5	Solicitar
PCCD42	5.1	6.5	1.71	0.6 +0.4	0.5	Solicitar
PCCD43	5.2	6.5	1.63	0.6 +0.4	0.5	Solicitar
PCCD44	5.3	6.5	1.54	0.6 +0.4	0.5	Solicitar
PCCD45	5.4	6.5	1.45	0.6 +0.4	0.5	Solicitar
PCCD46	5.5	7	1.8	0.6 +0.4	0.5	Solicitar
PCCD47	5.6	7	1.71	0.6 +0.4	0.5	Solicitar
PCCD48	5.7	7	1.63	0.6 +0.4	0.5	Solicitar
PCCD49	5.8	7	1.54	0.6 +0.4	0.5	Solicitar
PCCD50	5.9	7	1.45	0.6 +0.4	0.5	Solicitar
PCCD51	6	8	2.23	1.0 +0.5	0.5	Solicitar
PCCD52	6.1	8	2.15	1.0 +0.5	0.5	Solicitar
PCCD53	6.2	8	2.06	1.0 +0.5	0.5	Solicitar
PCCD54	6.3	8	1.97	1.0 +0.5	0.5	Solicitar
PCCD55	6.4	8	1.89	1.0 +0.5	0.5	Solicitar
PCCD56	6.5	9	3.17	1.0 +0.5	1	Solicitar
PCCD57	7	9	2.73	1.0 +0.5	1	Solicitar
PCCD58	7.5	10	3.17	1.0 +0.5	1	Solicitar
PCCD59	8	10	2.73	1.0 +0.5	1	Solicitar
PCCD60	8.5	11	3.17	1.0 +0.5	1	Solicitar
PCCD61	9	11	2.73	1.0 +0.5	1	Solicitar
PCCD62	9.5	12	3.17	1.0 +0.5	1	Solicitar
PCCD63	10	12	2.73	1.0 +0.5	1	Solicitar
PCCD64	10.5	13	3.17	1.0 +0.5	1	Solicitar
PCCD65	11	13	2.73	1.0 +0.5	1	Solicitar
PCCD66	11.5	14	3.17	1.0 +0.5	1	Solicitar
PCCD67	12	14	2.73	1.0 +0.5	1	Solicitar
PCCD68	12.5	15	3.17	1.0 +0.5	1	Solicitar
PCCD69	13	15	2.73	1.0 +0.5	1	Solicitar
PCCD70	13.5	16	3.67	1.5 +0.5	1.5	Solicitar
PCCD71	14	16	3.23	1.5 +0.5	1.5	Solicitar
PCCD72	14.5	17	3.67	1.5 +0.5	1.5	Solicitar
PCCD73	15	17	3.23	1.5 +0.5	1.5	Solicitar
PCCD74	15.5	18	3.67	1.5 +0.5	1.5	Solicitar
PCCD75	16	18	3.23	1.5 +0.5	1.5	Solicitar
PCCD76	16.5	19	3.67	1.5 +0.5	1.5	Solicitar
