Punção Cabeça Cilíndrica ISO 8020

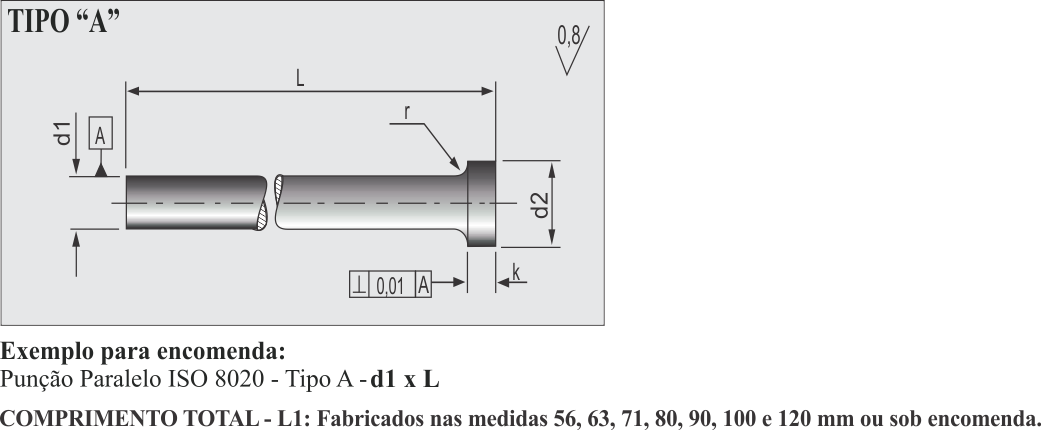

Tipo A
| Código | D1 | D2 | K | d3 | r | R | |
|---|---|---|---|---|---|---|---|
| PCC17 | 32 | 35 | 5 | - | 0.4 | 13 | Solicitar |
| PCC16 | 25 | 28 | 5 | - | 0.4 | 13 | Solicitar |
| PCC15 | 20 | 23 | 5 | - | 0.4 | 13 | Solicitar |
| PCC14 | 16 | 19 | 5 | - | 0.4 | 13 | Solicitar |
| PCC13 | 15 | 18 | 5 | - | 0.4 | 13 | Solicitar |
| PCC12 | 14 | 17 | 5 | - | 0.4 | 13 | Solicitar |
| PCC11 | 13 | 16 | 5 | - | 0.4 | 13 | Solicitar |
| PCC9 | 11 | 14 | 3 | - | 0.3 | 13 | Solicitar |
| PCC8 | 10 | 13 | 3 | - | 0.3 | 13 | Solicitar |
| PCC7 | 9 | 12 | 3 | - | 0.3 | 11 | Solicitar |
| PCC6 | 8 | 11 | 3 | - | 0.3 | 10 | Solicitar |
| PCC5 | 7 | 10 | 3 | - | 0.3 | 9 | Solicitar |
| PCC4 | 6 | 9 | 3 | - | 0.3 | 8 | Solicitar |
| PCC10 | 12 | 15 | 5 | - | 0.4 | 13 | Solicitar |
| PCC3 | 5 | 8 | 3 | - | 0.3 | 6 | Solicitar |
| PCC2 | *4 | 6 | 3 | - | 0.3 | 6 | Solicitar |
| PCC1 | *3 | 5 | 3 | - | 0.2 | 5 | Solicitar |

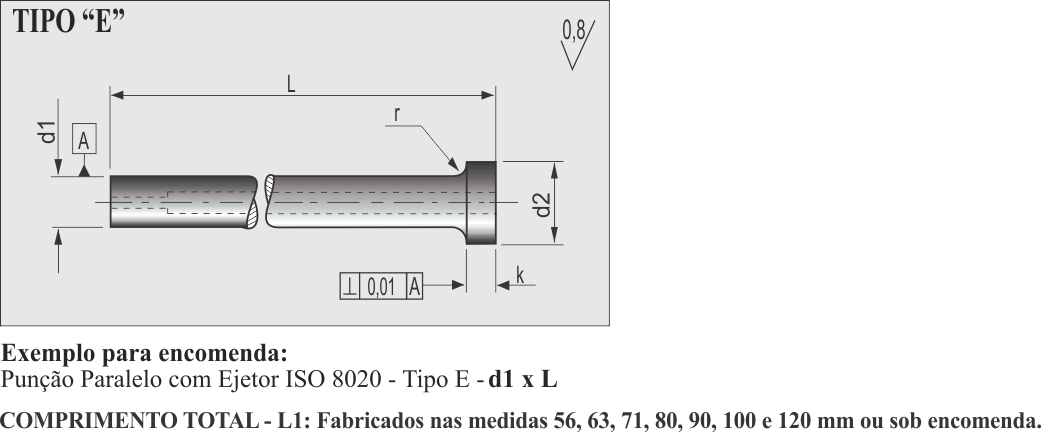

Tipo E
| Código | D1 | D2 | K | d3 | r | R | |
|---|---|---|---|---|---|---|---|
| PCCE17 | 32 | 35 | 5 | - | 0.4 | 13 | Solicitar |
| PCCE16 | 25 | 28 | 5 | - | 0.4 | 13 | Solicitar |
| PCCE15 | 20 | 23 | 5 | - | 0.4 | 13 | Solicitar |
| PCCE14 | 16 | 19 | 5 | - | 0.4 | 13 | Solicitar |
| PCCE13 | 15 | 18 | 5 | - | 0.4 | 13 | Solicitar |
| PCCE12 | 14 | 17 | 5 | - | 0.4 | 13 | Solicitar |
| PCCE11 | 13 | 16 | 5 | - | 0.4 | 13 | Solicitar |
| PCCE8 | 10 | 13 | 3 | - | 0.3 | 13 | Solicitar |
| PCCE7 | 9 | 12 | 3 | - | 0.3 | 11 | Solicitar |
| PCCE6 | 8 | 11 | 3 | - | 0.3 | 10 | Solicitar |
| PCCE5 | 7 | 10 | 3 | - | 0.3 | 9 | Solicitar |
| PCCE4 | 6 | 9 | 3 | - | 0.3 | 8 | Solicitar |
| PCCE10 | 12 | 15 | 5 | - | 0.4 | 13 | Solicitar |
| PCCE9 | 11 | 14 | 3 | - | 0.3 | 13 | Solicitar |
| PCCE3 | 5 | 8 | 3 | - | 0.3 | 6 | Solicitar |
| PCCE2 | *4 | 6 | 3 | - | 0.3 | 6 | Solicitar |
| PCCE1 | *3 | 5 | 3 | - | 0.2 | 5 | Solicitar |

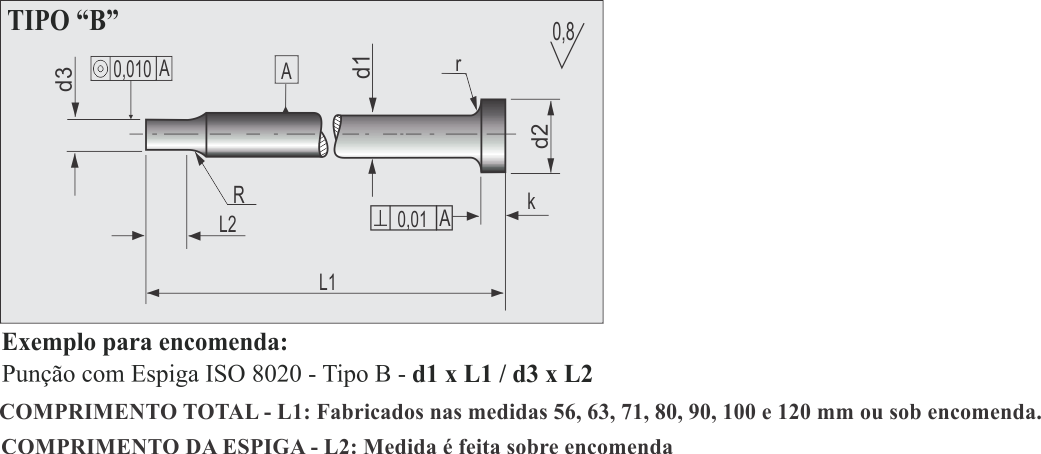

Tipo B
| Código | D1 | D2 | K | d3 | r | R | |
|---|---|---|---|---|---|---|---|
| PCCEF17 | 32 | 35 | 5 | 20.0 - 31.9 | 0.4 | 13 | Solicitar |
| PCCEF16 | 25 | 28 | 5 | 16.5 - 24.9 | 0.4 | 13 | Solicitar |
| PCCEF15 | 20 | 23 | 5 | 12.0 - 19.9 | 0.4 | 13 | Solicitar |
| PCCEF14 | 16 | 19 | 5 | 8.0 - 15.9 | 0.4 | 13 | Solicitar |
| PCCEF13 | 15 | 18 | 5 | 8.5 - 14.9 | 0.4 | 13 | Solicitar |
| PCCEF12 | 14 | 17 | 5 | 7.5 - 13.9 | 0.4 | 13 | Solicitar |
| PCCEF11 | 13 | 16 | 5 | 5.0 - 12.9 | 0.4 | 13 | Solicitar |
| PCCEF10 | 12 | 15 | 5 | 5.8 - 11.9 | 0.4 | 13 | Solicitar |
| PCCEF9 | 11 | 14 | 3 | 5.1 - 10.9 | 0.3 | 13 | Solicitar |
| PCCEF8 | 10 | 13 | 3 | 4.0 - 9.9 | 0.3 | 13 | Solicitar |
| PCCEF7 | 9 | 12 | 3 | 3.5 - 8.9 | 0.3 | 11 | Solicitar |
| PCCEF6 | 8 | 11 | 3 | 2.5 - 7.9 | 0.3 | 10 | Solicitar |
| PCCEF5 | 7 | 10 | 3 | 2.0 - 6.9 | 0.3 | 9 | Solicitar |
| PCCEF4 | 6 | 9 | 3 | 1.6 -5.9 | 0.3 | 8 | Solicitar |
| PCCEF3 | 5 | 8 | 3 | 1.5 - 4.9 | 0.3 | 6 | Solicitar |
| PCCEF2 | *4 | 6 | 3 | 1.0 - 3.9 | 0.3 | 6 | Solicitar |
| PCCEF1 | *3 | 5 | 3 | 0.8 - 2.9 | 0.2 | 5 | Solicitar |

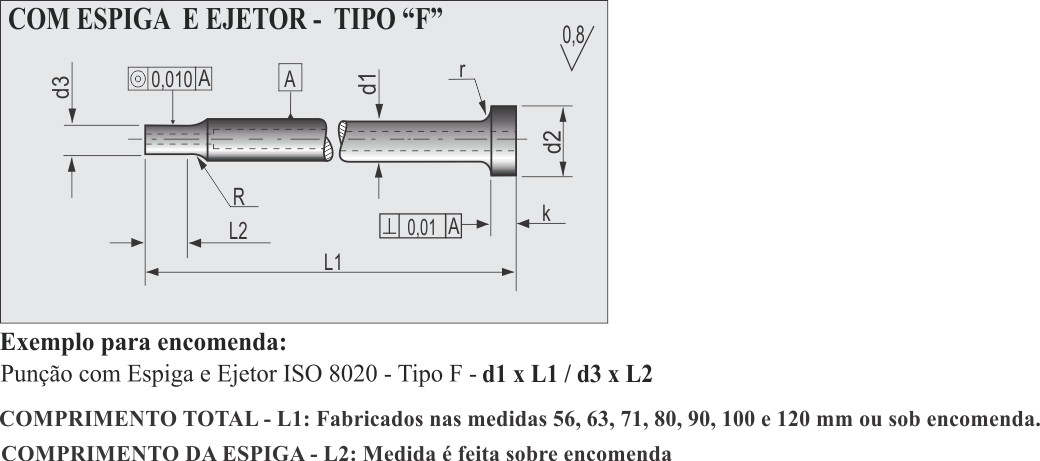

Tipo F
| Código | D1 | D2 | K | d3 | r | R | |
|---|---|---|---|---|---|---|---|
| PCCEFE1 | *3 | 5 | 3 | 0.8 - 2.9 | 0.2 | 5 | Solicitar |
| PCCEFE2 | *4 | 6 | 3 | 1.0 - 3.9 | 0.3 | 6 | Solicitar |
| PCCEFE3 | 5 | 8 | 3 | 1.5 - 4.9 | 0.3 | 6 | Solicitar |
| PCCEFE4 | 6 | 9 | 3 | 1.6 -5.9 | 0.3 | 8 | Solicitar |
| PCCEFE5 | 7 | 10 | 3 | 2.0 - 6.9 | 0.3 | 9 | Solicitar |
| PCCEFE6 | 8 | 11 | 3 | 2.5 - 7.9 | 0.3 | 10 | Solicitar |
| PCCEFE7 | 9 | 12 | 3 | 3.5 - 8.9 | 0.3 | 11 | Solicitar |
| PCCEFE8 | 10 | 13 | 3 | 4.0 - 9.9 | 0.3 | 13 | Solicitar |
| PCCEFE9 | 11 | 14 | 3 | 5.1 - 10.9 | 0.3 | 13 | Solicitar |
| PCCEFE10 | 12 | 15 | 5 | 5.8 - 11.9 | 0.4 | 13 | Solicitar |
| PCCEFE11 | 13 | 16 | 5 | 5.0 - 12.9 | 0.4 | 13 | Solicitar |
| PCCEFE12 | 14 | 17 | 5 | 7.5 - 13.9 | 0.4 | 13 | Solicitar |
| PCCEFE13 | 15 | 18 | 5 | 8.5 - 14.9 | 0.4 | 13 | Solicitar |
| PCCEFE14 | 16 | 19 | 5 | 8.0 - 15.9 | 0.4 | 13 | Solicitar |
| PCCEFE15 | 20 | 23 | 5 | 12.0 - 19.9 | 0.4 | 13 | Solicitar |
| PCCEFE16 | 25 | 28 | 5 | 16.5 - 24.9 | 0.4 | 13 | Solicitar |
| PCCEFE17 | 32 | 35 | 5 | 20.0 - 31.9 | 0.4 | 13 | Solicitar |
