Punção Cabeça Cilindrica Espiga de Forma e Ejetor

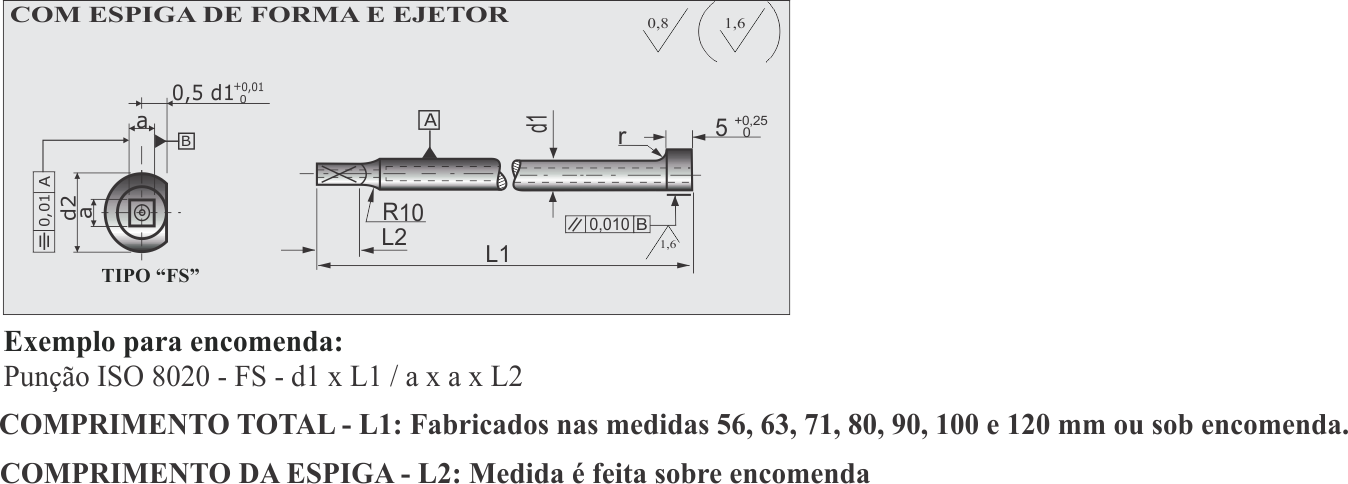

Quadrada FS ISO 8020
| Código | D1 | D2 | Tipo | K | R | |
|---|---|---|---|---|---|---|
| PCCCEFS1 | 5 | 8 | 1 - 3.5 | 5 | 0.3 | Solicitar |
| PCCCEFS2 | 6 | 9 | 1.6 - 4.2 | 5 | 0.3 | Solicitar |
| PCCCEFS3 | 7 | 10 | 1.7 - 4.8 | 5 | 0.3 | Solicitar |
| PCCCEFS4 | 8 | 11 | 2 - 5.6 | 5 | 0.3 | Solicitar |
| PCCCEFS5 | 9 | 12 | 2.7 - 6.3 | 5 | 0.3 | Solicitar |
| PCCCEFS6 | 10 | 13 | 3.5 - 7.0 | 5 | 0.3 | Solicitar |
| PCCCEFS7 | 11 | 14 | 3.8 - 7.7 | 5 | 0.3 | Solicitar |
| PCCCEFS8 | 12 | 15 | 4.2 - 8.4 | 5 | 0.4 | Solicitar |
| PCCCEFS9 | 13 | 16 | 4.5 - 9.1 | 5 | 0.4 | Solicitar |
| PCCCEFS10 | 14 | 17 | 5.1 - 9.8 | 5 | 0.4 | Solicitar |
| PCCCEFS11 | 15 | 18 | 5.8 - 10.5 | 5 | 0.4 | Solicitar |
| PCCCEFS12 | 16 | 19 | 6.0 - 11.2 | 5 | 0.4 | Solicitar |
| PCCCEFS13 | 20 | 23 | 8.0 - 14.1 | 5 | 0.4 | Solicitar |
| PCCCEFS14 | 25 | 28 | 10. - 17.6 | 5 | 0.4 | Solicitar |
| PCCCEFS15 | 32 | 35 | 10.0 - 22.5 | 5 | 0.4 | Solicitar |

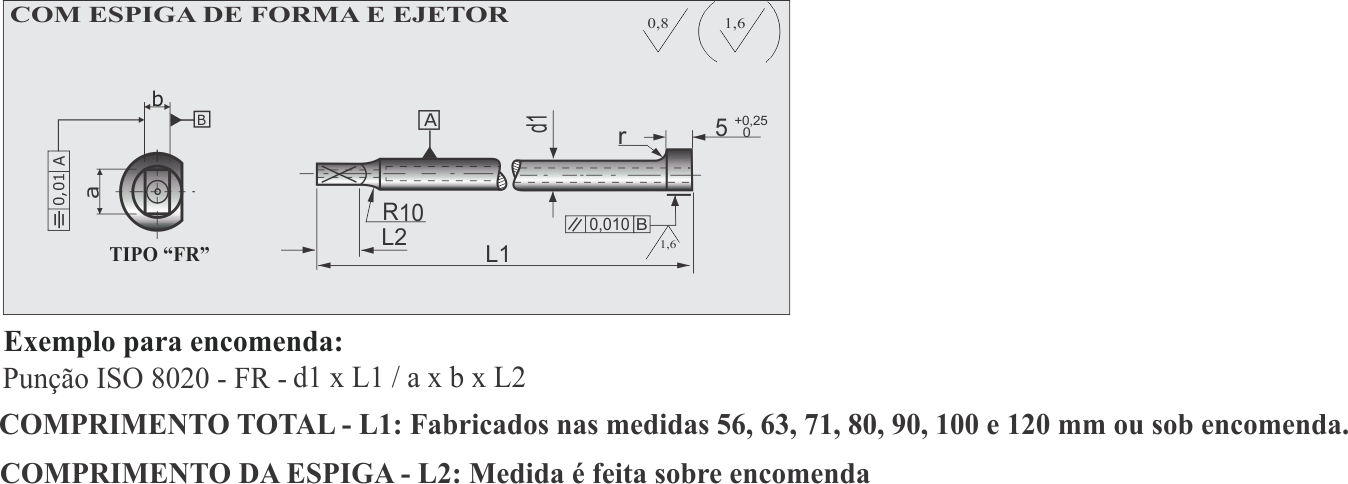

Retangular FR ISO 8020
| Código | D1 | D2 | Tipo | K | R | |
|---|---|---|---|---|---|---|
| PCCCEFR1 | 5 | 8 | 1-4.9 | 5 | 0.3 | Solicitar |
| PCCCEFR2 | 6 | 9 | 1.6-5.9 | 5 | 0.3 | Solicitar |
| PCCCEFR3 | 7 | 10 | 1.7-6.9 | 5 | 0.3 | Solicitar |
| PCCCEFR4 | 8 | 11 | 2-7.9 | 5 | 0.3 | Solicitar |
| PCCCEFR5 | 9 | 12 | 2.7-8.9 | 5 | 0.3 | Solicitar |
| PCCCEFR6 | 10 | 13 | 3.5-9.9 | 5 | 0.3 | Solicitar |
| PCCCEFR7 | 11 | 14 | 3.8-10.9 | 5 | 0.3 | Solicitar |
| PCCCEFR8 | 12 | 15 | 4.2-11.9 | 5 | 0.4 | Solicitar |
| PCCCEFR9 | 13 | 16 | 4.5-12.9 | 5 | 0.4 | Solicitar |
| PCCCEFR10 | 14 | 17 | 5.1-13.9 | 5 | 0.4 | Solicitar |
| PCCCEFR11 | 15 | 18 | 5.8-14.9 | 5 | 0.4 | Solicitar |
| PCCCEFR12 | 16 | 19 | 6.0-15.9 | 5 | 0.4 | Solicitar |
| PCCCEFR13 | 20 | 23 | 8.0-19.9 | 5 | 0.4 | Solicitar |
| PCCCEFR14 | 25 | 28 | 10.0-24.9 | 5 | 0.4 | Solicitar |
| PCCCEFR15 | 32 | 35 | 10.0-31.9 | 5 | 0.4 | Solicitar |

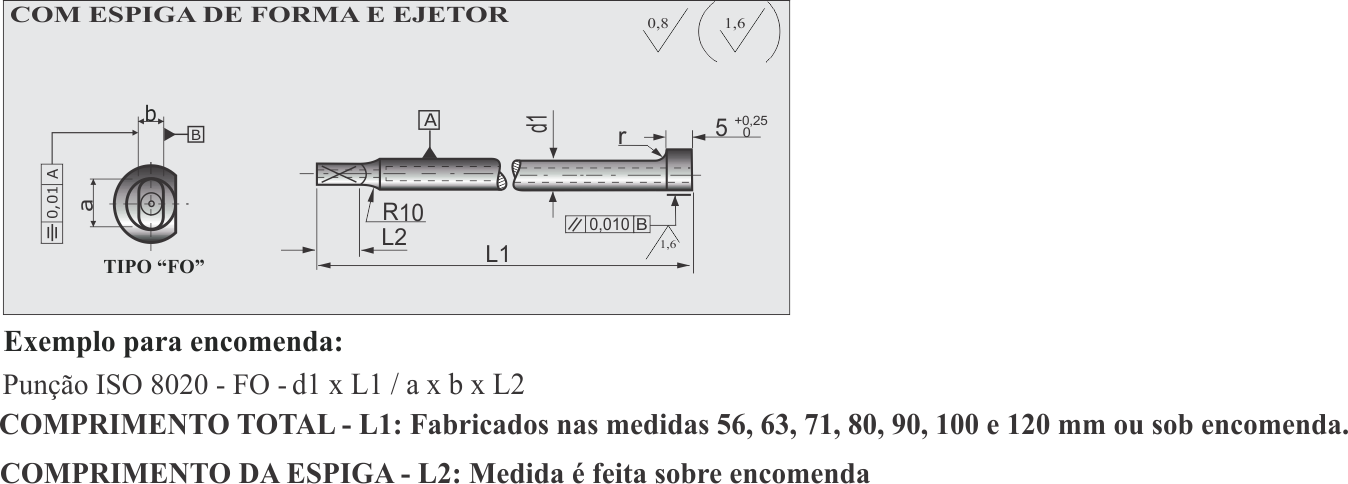

Oblongo FO ISO 8020
| Código | D1 | D2 | Tipo | K | R | |
|---|---|---|---|---|---|---|
| PCCCEFO1 | 5 | 8 | 1-4.9 | 5 | 0.3 | Solicitar |
| PCCCEFO2 | 6 | 9 | 1.6-5.9 | 5 | 0.3 | Solicitar |
| PCCCEFO3 | 7 | 10 | 1.7-6.9 | 5 | 0.3 | Solicitar |
| PCCCEFO4 | 8 | 11 | 2-7.9 | 5 | 0.3 | Solicitar |
| PCCCEFO5 | 9 | 12 | 2.7-8.9 | 5 | 0.3 | Solicitar |
| PCCCEFO6 | 10 | 13 | 3.5-9.9 | 5 | 0.3 | Solicitar |
| PCCCEFO7 | 11 | 14 | 3.8-10.9 | 5 | 0.3 | Solicitar |
| PCCCEFO8 | 12 | 15 | 4.2-11.9 | 5 | 0.4 | Solicitar |
| PCCCEFO9 | 13 | 16 | 4.5-12.9 | 5 | 0.4 | Solicitar |
| PCCCEFO10 | 14 | 17 | 5.1-13.9 | 5 | 0.4 | Solicitar |
| PCCCEFO11 | 15 | 18 | 5.8-14.9 | 5 | 0.4 | Solicitar |
| PCCCEFO12 | 16 | 19 | 6.0-15.9 | 5 | 0.4 | Solicitar |
| PCCCEFO13 | 20 | 23 | 8.0-19.9 | 5 | 0.4 | Solicitar |
| PCCCEFO14 | 25 | 28 | 10.0-24.9 | 5 | 0.4 | Solicitar |
| PCCCEFO15 | 32 | 35 | 10.0-31.9 | 5 | 0.4 | Solicitar |
