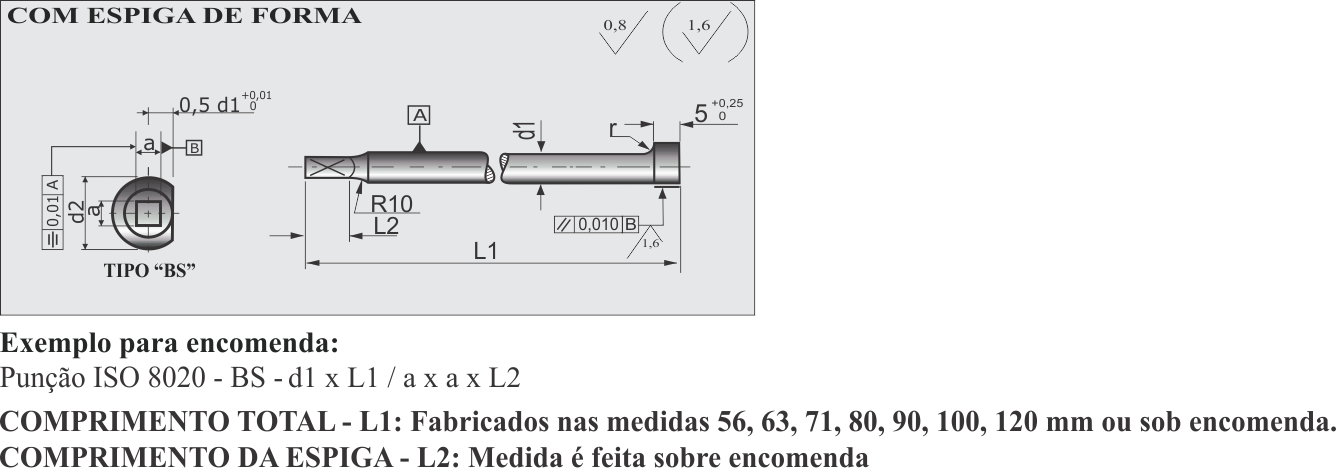

Punção Cabeça Cilindrica Espiga de Forma
Quadrado BS ISO 8020
| Código | D1 | D2 | Tipo | K | R | |
|---|---|---|---|---|---|---|
| PCCCEFBS1 | 5 | 8 | 1 - 3.5 | 5 | 0.3 | Solicitar |
| PCCCEFBS2 | 6 | 9 | 1.6 - 4.2 | 5 | 0.3 | Solicitar |
| PCCCEFBS3 | 7 | 10 | 1.7 - 4.8 | 5 | 0.3 | Solicitar |
| PCCCEFBS4 | 8 | 11 | 2 - 5.6 | 5 | 0.3 | Solicitar |
| PCCCEFBS5 | 9 | 12 | 2.7 - 6.3 | 5 | 0.3 | Solicitar |
| PCCCEFBS6 | 10 | 13 | 3.5 - 7.0 | 5 | 0.3 | Solicitar |
| PCCCEFBS7 | 11 | 14 | 3.8 - 7.7 | 5 | 0.3 | Solicitar |
| PCCCEFBS8 | 12 | 15 | 4.2 - 8.4 | 5 | 0.4 | Solicitar |
| PCCCEFBS9 | 13 | 16 | 4.5 - 9.1 | 5 | 0.4 | Solicitar |
| PCCCEFBS10 | 14 | 17 | 5.1 - 9.8 | 5 | 0.4 | Solicitar |
| PCCCEFBS11 | 15 | 18 | 5.8 - 10.5 | 5 | 0.4 | Solicitar |
| PCCCEFBS12 | 16 | 19 | 6.0 - 11.2 | 5 | 0.4 | Solicitar |
| PCCCEFBS13 | 20 | 23 | 8.0 - 14.1 | 5 | 0.4 | Solicitar |
| PCCCEFBS14 | 25 | 28 | 10. - 17.6 | 5 | 0.4 | Solicitar |
| PCCCEFBS15 | 32 | 35 | 10.0 - 22.5 | 5 | 0.4 | Solicitar |
Rentagular BR ISO 8020
| Código | D1 | D2 | Tipo | K | R | |
|---|---|---|---|---|---|---|
| PCCCEFBR1 | 5 | 8 | 1-4.9 | 5 | 0.3 | Solicitar |
| PCCCEFBR2 | 6 | 9 | 1.6-5.9 | 5 | 0.3 | Solicitar |
| PCCCEFBR3 | 7 | 10 | 1.7-6.9 | 5 | 0.3 | Solicitar |
| PCCCEFBR4 | 8 | 11 | 2-7.9 | 5 | 0.3 | Solicitar |
| PCCCEFBR5 | 9 | 12 | 2.7-8.9 | 5 | 0.3 | Solicitar |
| PCCCEFBR6 | 10 | 13 | 3.5-9.9 | 5 | 0.3 | Solicitar |
| PCCCEFBR7 | 11 | 14 | 3.8-10.9 | 5 | 0.3 | Solicitar |
| PCCCEFBR8 | 12 | 15 | 4.2-11.9 | 5 | 0.4 | Solicitar |
| PCCCEFBR9 | 13 | 16 | 4.5-12.9 | 5 | 0.4 | Solicitar |
| PCCCEFBR10 | 14 | 17 | 5.1-13.9 | 5 | 0.4 | Solicitar |
| PCCCEFBR11 | 15 | 18 | 5.8-14.9 | 5 | 0.4 | Solicitar |
| PCCCEFBR12 | 16 | 19 | 6.0-15.9 | 5 | 0.4 | Solicitar |
| PCCCEFBR13 | 20 | 23 | 8.0-19.9 | 5 | 0.4 | Solicitar |
| PCCCEFBR14 | 25 | 28 | 10.0-24.9 | 5 | 0.4 | Solicitar |
| PCCCEFBR15 | 32 | 35 | 10.0-31.9 | 5 | 0.4 | Solicitar |

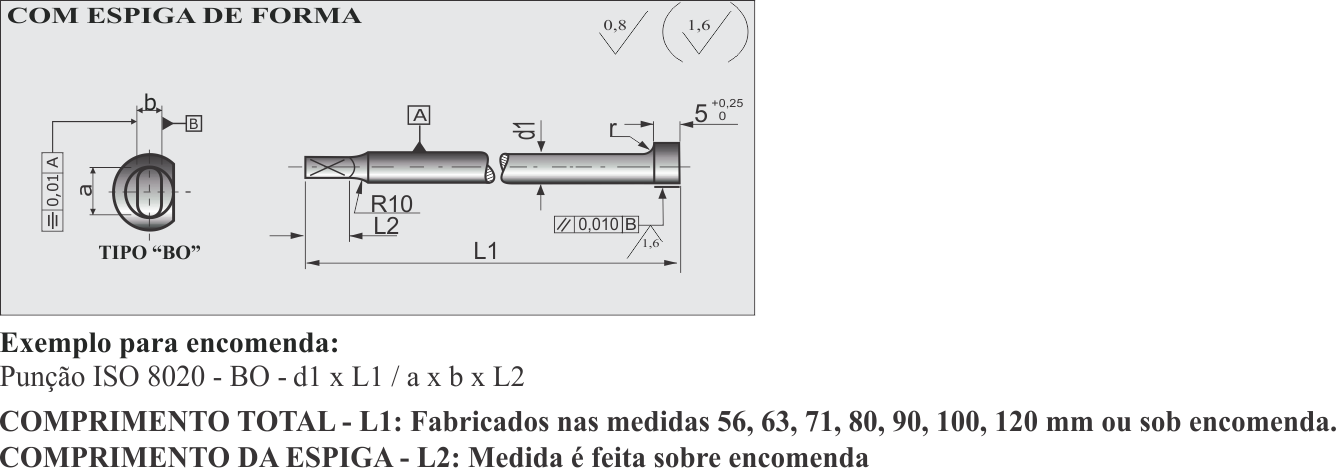

Oblongo BO ISO 8020
| Código | D1 | D2 | Tipo | K | R | |
|---|---|---|---|---|---|---|
| PCCCEFBO1 | 5 | 8 | 1-4.9 | 5 | 0.3 | Solicitar |
| PCCCEFBO2 | 6 | 9 | 1.6-5.9 | 5 | 0.3 | Solicitar |
| PCCCEFBO3 | 7 | 10 | 1.7-6.9 | 5 | 0.3 | Solicitar |
| PCCCEFBO4 | 8 | 11 | 2-7.9 | 5 | 0.3 | Solicitar |
| PCCCEFBO5 | 9 | 12 | 2.7-8.9 | 5 | 0.3 | Solicitar |
| PCCCEFBO6 | 10 | 13 | 3.5-9.9 | 5 | 0.3 | Solicitar |
| PCCCEFBO7 | 11 | 14 | 3.8-10.9 | 5 | 0.3 | Solicitar |
| PCCCEFBO8 | 12 | 15 | 4.2-11.9 | 5 | 0.4 | Solicitar |
| PCCCEFBO9 | 13 | 16 | 4.5-12.9 | 5 | 0.4 | Solicitar |
| PCCCEFBO10 | 14 | 17 | 5.1-13.9 | 5 | 0.4 | Solicitar |
| PCCCEFBO11 | 15 | 18 | 5.8-14.9 | 5 | 0.4 | Solicitar |
| PCCCEFBO12 | 16 | 19 | 6.0-15.9 | 5 | 0.4 | Solicitar |
| PCCCEFBO13 | 20 | 23 | 8.0-19.9 | 5 | 0.4 | Solicitar |
| PCCCEFBO14 | 25 | 28 | 10.0-24.9 | 5 | 0.4 | Solicitar |
| PCCCEFBO15 | 32 | 35 | 10.0-31.9 | 5 | 0.4 | Solicitar |
